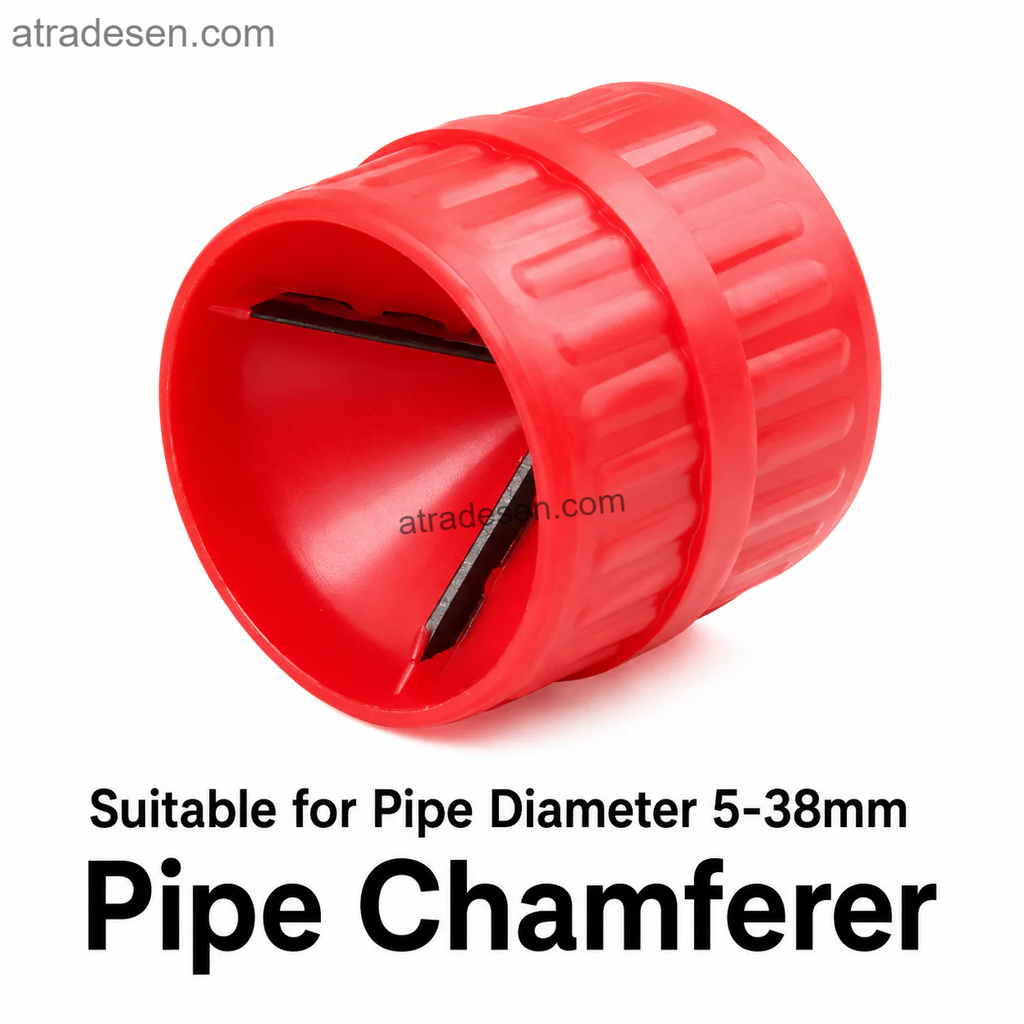

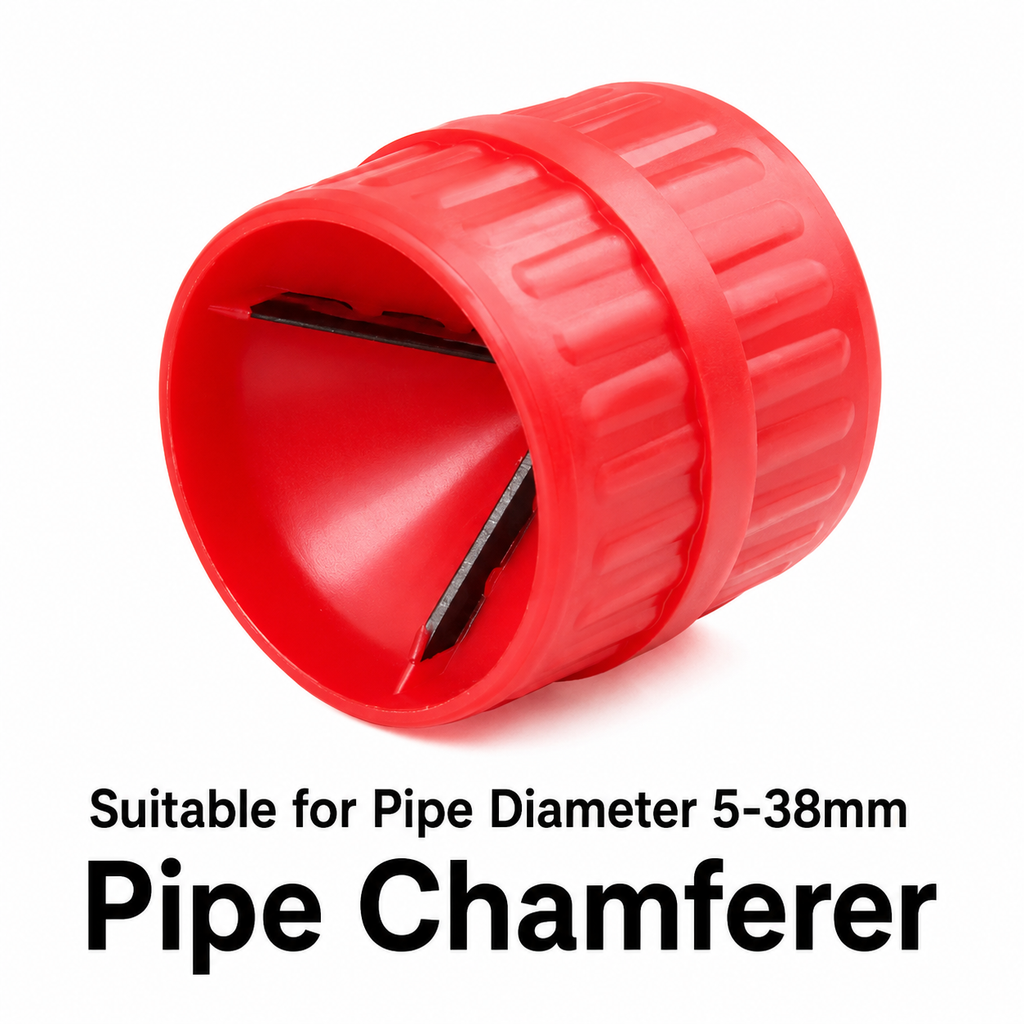

Plastic Dual-End Inner-Outer Pipe Reamer & Chamfering Tool (5-38mm)

Ensure smooth, leak-free plumbing connections with our premium plastic inner-outer pipe reamer, available at Atradesen.com. Crafted with an impact-resistant polymer shell and sharp carbon steel deburring blades, this dual-end hand tool cleanly chamfers both the inside and outside edges of your tubing.

Compatible with standard hand operation, this lightweight utility beveling tool prepares pipe ends perfectly for push-fit O-ring fittings, solvent-welded sleeves, and compression couplers.

Double-End Chamfering for Perfect Watertight Seals

When a water pipe is cut, it often leaves rough burrs, sharp square edges, or jagged plastic shavings. If pushed directly into standard rubber-ring push-fit couplers or solvent-weld sockets, these sharp edges can damage internal O-ring seals, prevent deep insertion, or compromise the contact area of solvent cement. Our dual-end chamferer resolves this risk by offering internal deburring on one side and external edge beveling on the other, smoothing out the tube edges to maximize sealing efficiency and prevent long-term joint leakage.

Compatible Pipe Materials & Sizing Limits

• Generous Sizing Capacity: Designed to accommodate any round rigid tubing or flexible piping with an outer diameter (OD) ranging from 5mm up to 38mm (approx. 0.2" to 1.5").
• Applicable Materials: Performs exceptionally well on soft metals and rigid plastics, including copper, brass, aluminum, PPR, PVC, PE, PU, and PEX pipes.
• Note: Avoid using on high-tensile steel or stainless steel pipes as these will dull the internal cutting blades.

Technical Specifications

Frequently Asked Questions (FAQ)

Q: Why is chamfering plastic pipes essential before inserting them into fittings?

A: When a pipe is cut, it leaves a sharp 90-degree outer edge. If you slide this sharp edge directly into a push-fit socket, the corner can nick, slice, or completely displace the internal rubber O-ring gasket, causing immediate or delayed leaks. Chamfering creates a smooth, tapered angle that glides safely past the gasket seal.

Q: How do I operate this double-sided reamer?

A: It is simple and tool-free. To clean the outer edge, insert the pipe end into the conical opening with the exposed blades and rotate the tool clockwise with moderate pressure. To clean the inner edge, flip the tool, insert the inner reamer core into the pipe opening, and rotate.
