Complete PVC 90° Elbow Drain Valve Kit
Optimize your tank's footprint with this all-inclusive DIY Elbow Drainage Kit from Atradesen.com. Featuring a space-saving 90-degree slotted bulkhead and a low-profile side-handle ball valve, this set is perfectly engineered for tight aquarium cabinets, sumps, and commercial reservoirs where both vertical and horizontal clearance are limited.
📦 What's Included in the DIY Set?
-
1x 90° Elbow Drain Joint: Features a slotted anti-clog cover to prevent livestock and large debris from blocking the drain while directing water sideways.
-
1x Side-Handle Ball Valve: A compact valve design that requires significantly less clearance to operate compared to standard T-handle valves.
-
2x PVC Pipe Sections: Includes one 10cm and one 20cm pipe. (Lengths can be easily custom-cut on-site with a hand saw).
💡 Installation & Assembly Guide (Please Read)
-
Shipped Unassembled: Components are shipped as separate loose parts for total customization.
-
Connection Method: For low-pressure gravity setups, parts can be push-fit tightly. For high water pressure, PVC cement/glue MUST be used on all slip joints (glue sold separately).
-
Sealing Advice: Wrap the bulkhead threads with Teflon/PTFE thread tape before tightening. Place the included silicone gasket on the smooth outer wall of your tank for a leak-proof seal.

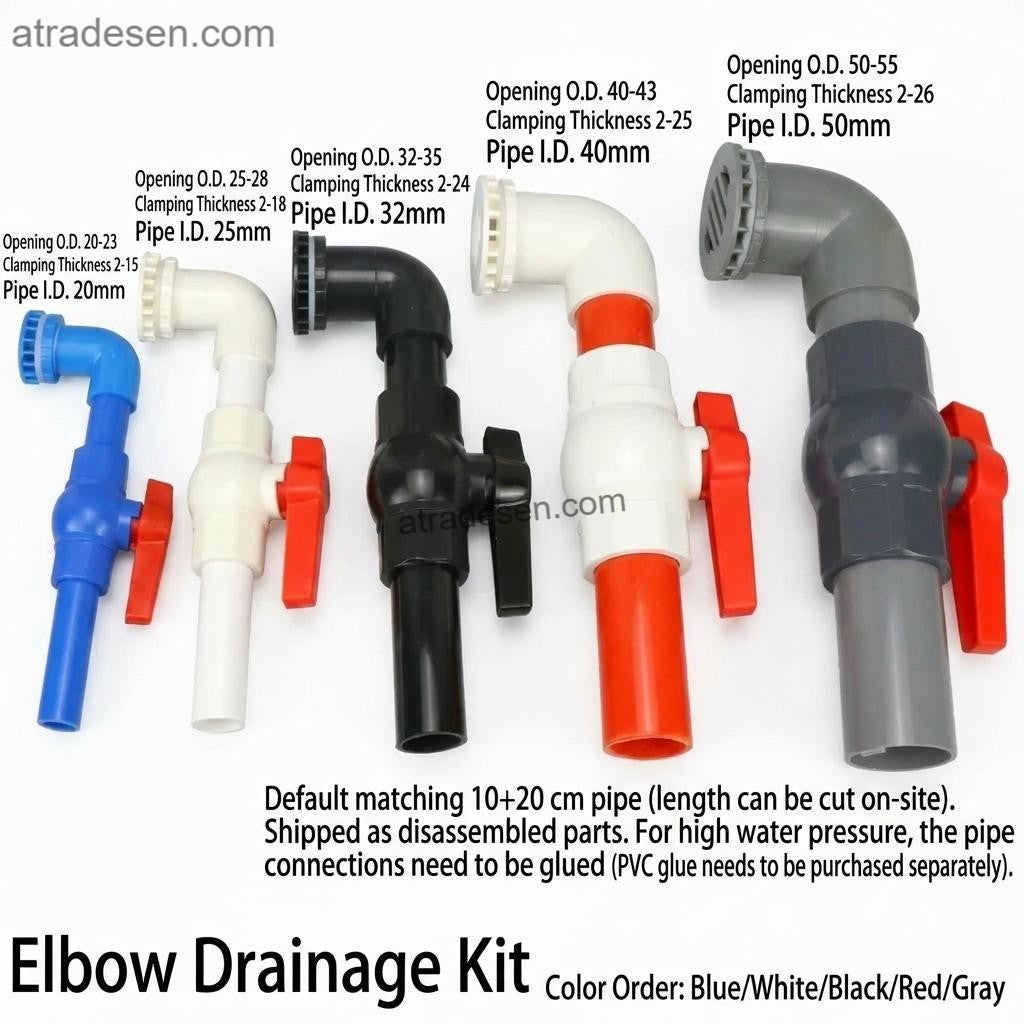

⚠️ Sizing & Drilling Guide (Crucial!)
Avoid installation errors by matching your tank specs with our Atradesen.com guide below:
-
20mm Kit: Pipe O.D: 20mm | Drill Hole: 20-23mm | Clamps Glass: 2-15mm
-
25mm Kit: Pipe O.D: 25mm | Drill Hole: 25-28mm | Clamps Glass: 2-18mm
-
32mm Kit: Pipe O.D: 32mm | Drill Hole: 32-35mm | Clamps Glass: 2-24mm
-
40mm Kit: Pipe O.D: 40mm | Drill Hole: 40-43mm | Clamps Glass: 2-25mm
-
50mm Kit: Pipe O.D: 50mm | Drill Hole: 50-55mm | Clamps Glass: 2-26mm
